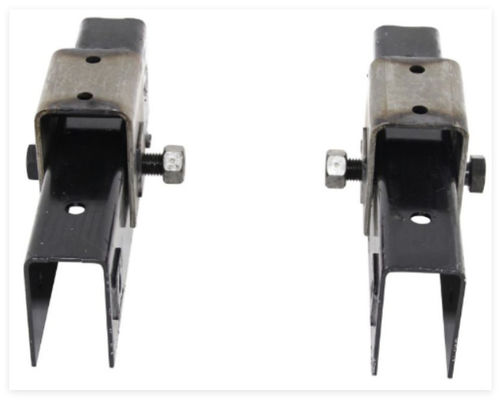

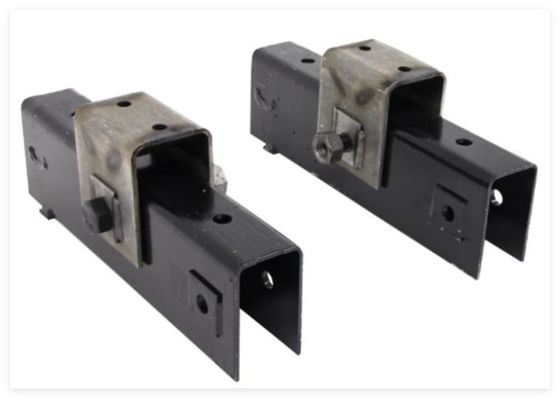

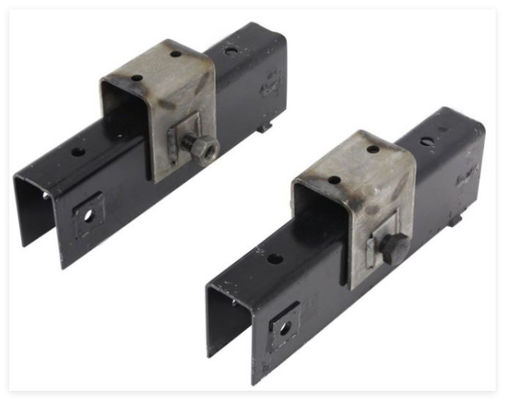

2-1/2" Tandem Axle Spring Equalizer 10000lbs Trailer Equalizers

Kit includes 18-3/8" long equalizers and necessary bolts and shackles for suspending your leaf springs from your trailer frame. Use with HAP-158-00 for a complete tandem-axle kit. Designed for use with 10,000-lb, general-duty  axles.

Features:

• Attaches 4 leaf springs (sold separately) to your trailer frame

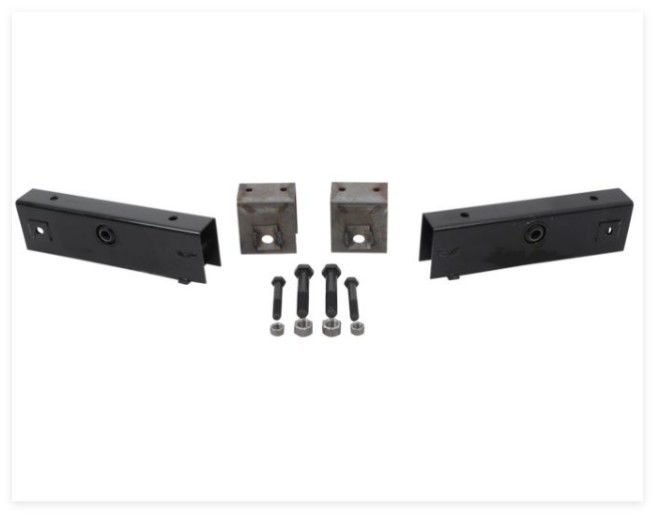

• Includes:

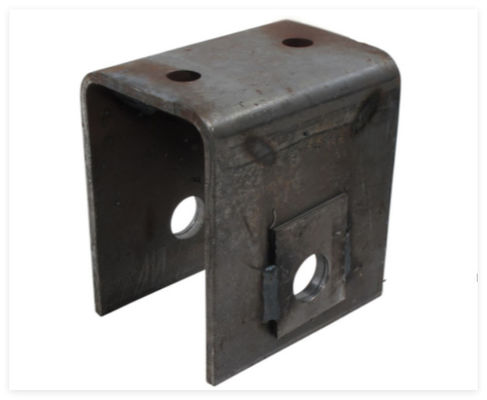

  • (2) 4-1/2" Tall center hangers with 1" bolt holes (29-42-2)

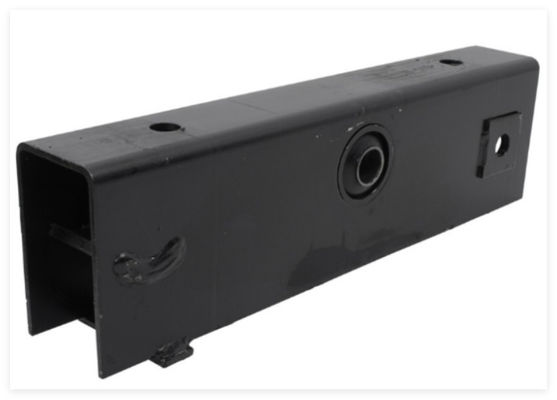

  • (2) 18-3/8" Long straight equalizers (13-140-3)
    • Allows for 42-1/4" between axles
    • 1" Diameter center hole for mounting to hanger
    • 3/4" Diameter side hole for attaching to spring
  • (2) 4-1/2" Long x 3/4" diameter spring-eye bolts (7-264)
  • (2) 3/4" Diameter locknuts (6-113)
  • (2) 5-1/4" Long x 1" diameter equalizer bolts (7-169)
  • (2) 1" Diameter locknuts (6-112)
• Use in conjunction with HAP-158-00 for complete kit
  • HAP-158-00 contains front and rear hangers and mounting hardware
• Designed for use on trailers with tandem, 10,000-lb, general-duty Dexter axles
• Does not include components for mounting axle to springs

HAP-258-02 Hanger Kit - 2.50" Slipper Springs - 10,000 lbs General Duty
