Tandem Axle Trailer Equalizer Kit 3" Slipper Spring Equalizer 14-1/4"

Kit includes 14-1/4" long equalizers and bolts and shackles for suspending your leaf springs from your trailer frame. Use with HAP-103-00 for a complete tandem-axle kit. Designed for use with 10,000-lb to 15,000-lb, heavy-duty  axles.

Features:

• Attaches 4 leaf springs (sold separately) to your trailer frame
  • Use table below to determine hanger location (when used with HAP-103-00)

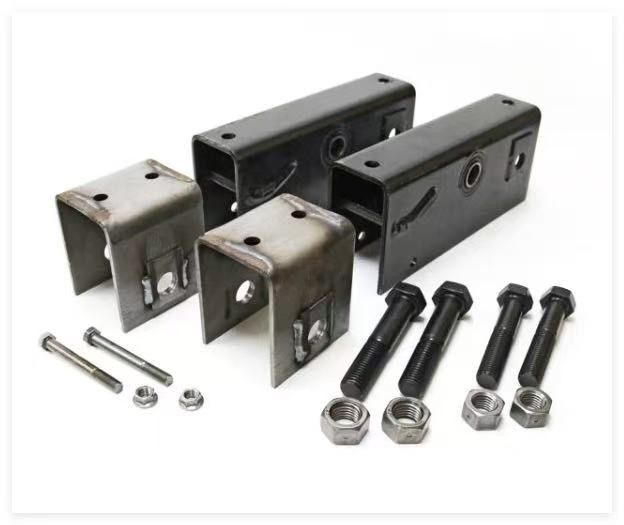

• Includes:

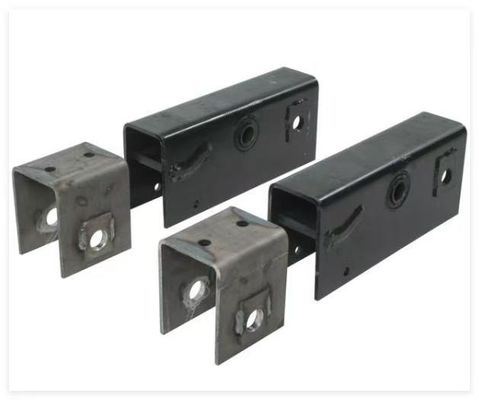

  • (2) 4-1/8" Tall center hangers with 1-1/8" bolt holes (29-43-2)
  • (1) 14-1/4" Long, left-hand equalizer (13-107-7LH)
    • Allows for 38" between axles
  • (1) 14-1/4" Long, right-hand equalizer (13-107-8RH)
    • Allows for 38" between axles

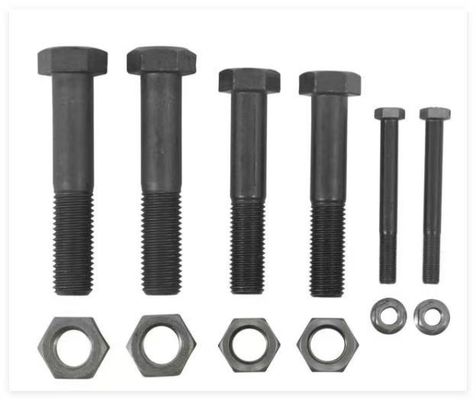

  • (2) 4-1/2" Long x 1/2" diameter spring keeper bolts (7-95)
  • (2) 1/2" Diameter locknuts (6-46)
  • (2) 5-1/2" Long x 1" diameter spring-eye bolts (7-169)
  • (2) 1" Diameter locknuts (6-112)
  • (2) 6" Long x 1-1/8" diameter equalizer bolts (7-170)
  • (2) 1-1/8" Diameter locknuts (6-72)
• Use in conjunction with HAP-103-00 for complete kit
  • HAP-103-00 includes front and rear hangers and mounting hardware
• Designed for use on trailers with tandem, 10,000-lb to 15,000-lb, heavy-duty axles
• Does not include components for mounting axle to springs

HAP-203-01 Hanger Kit - 3" Slipper Springs - 10,000 lbs to 15,000 lbs Heavy Duty
